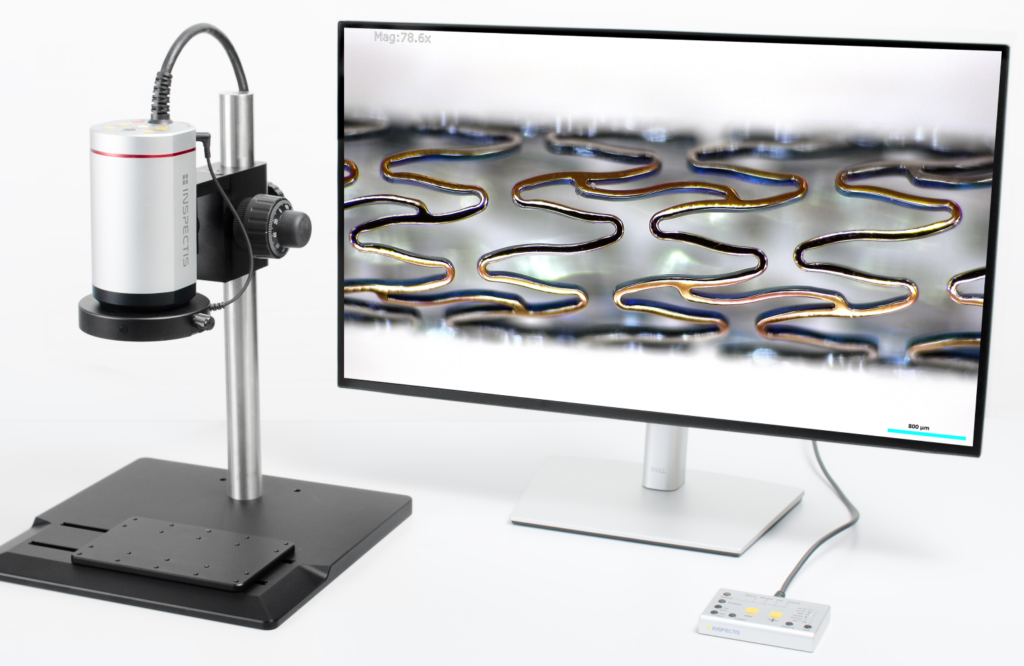

The F40s Advanced Digital Microscope is designed to speed up the every increasing demands of critical inspection applications found in modern manufacturing.
The F40s creates vivid Full HD video at 60 fps and low latency with fast auto-focusing and with a 226 mm free working distance the F40s offers the user a completely free working area for inspection, assembly, image capture and measurement applications.
This allows for larger inspection objects, equipment and tools to be used and avoids the traditional microscope and stereo microscope pitfalls where you are working blind and with a very limiting space between the lens and the subject.

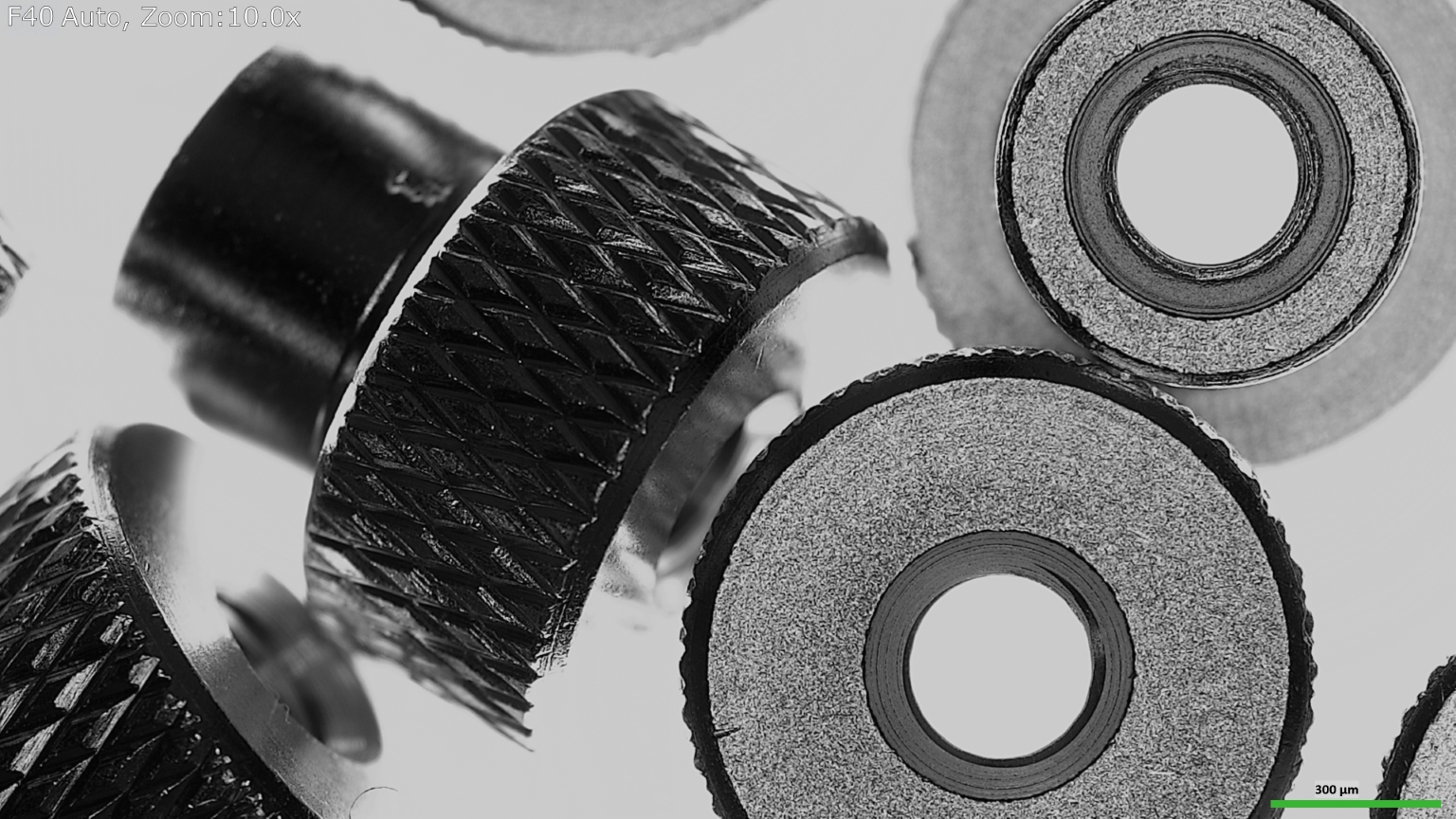

The system’s standard optics produces 2.5x – 100x magnification (on 28” monitor) maintaining high image quality across the entire field of view and if further magnification is needed, a wide range of macro Lenses can be added to significantly increase magnification, up to 1130x equal to x400 optical magnification or 0.53mm field of view.
In addition to its high frame rate, F40s sensor provides higher sensitivity and a higher dynamic range than previous FHD cameras.
Industry-leading signal processing with exceptional flicker and flare reduction for best image quality.
Video Output Full HD, 1080p, 60 frames per second
40:1 motorised zoom with auto-focus and auto-brightness intensity control, F1.6 – 4.8
Magnification (on 28” monitor) 2.5x to 100x with standard lens
Field of View 240mm at 1x zoom, 6.1mm at 40x zoom
Working Distance 226mm with standard lens
On-board Controls Zoom, Auto-brightness level, Manual/Auto Focus, White Balance
Goods-In Inspection – Critical Materials, Parts, Components and Assemblies Inspection at Goods-in
In Process Inspection – Can be added at any stage of a production process with a wide range of stands, arms, in-line axis and fixtures to put the microscope close to the parts be produced.
Live Video for Detailed Images – Large working distance and lag-free LIVE video (60fps) the F40s offers a great solution for applications where the items need to be manually handled.

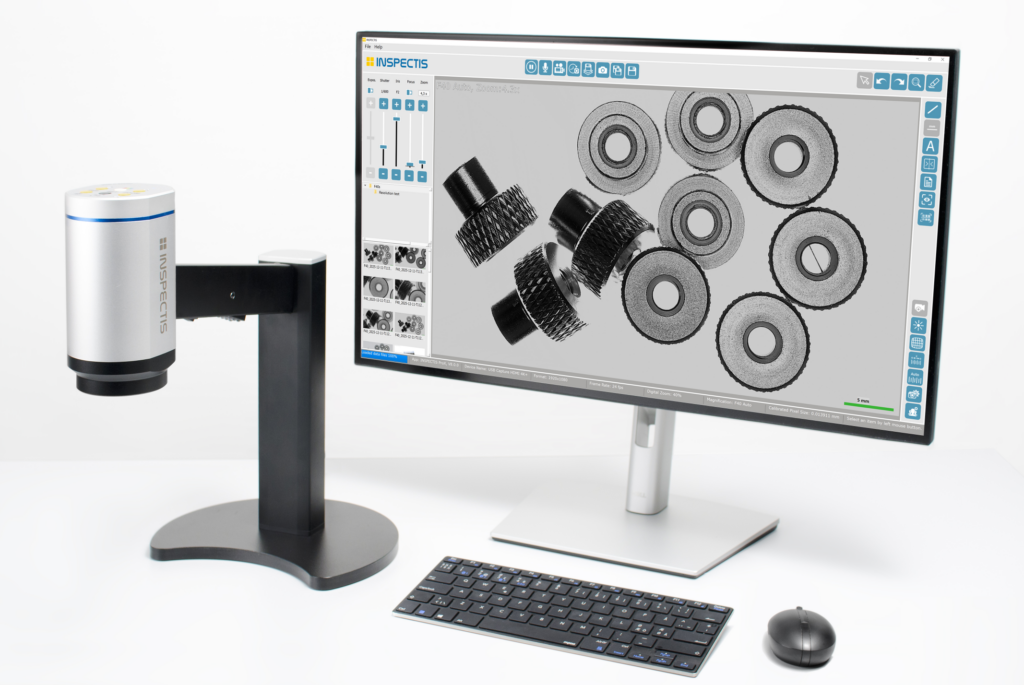

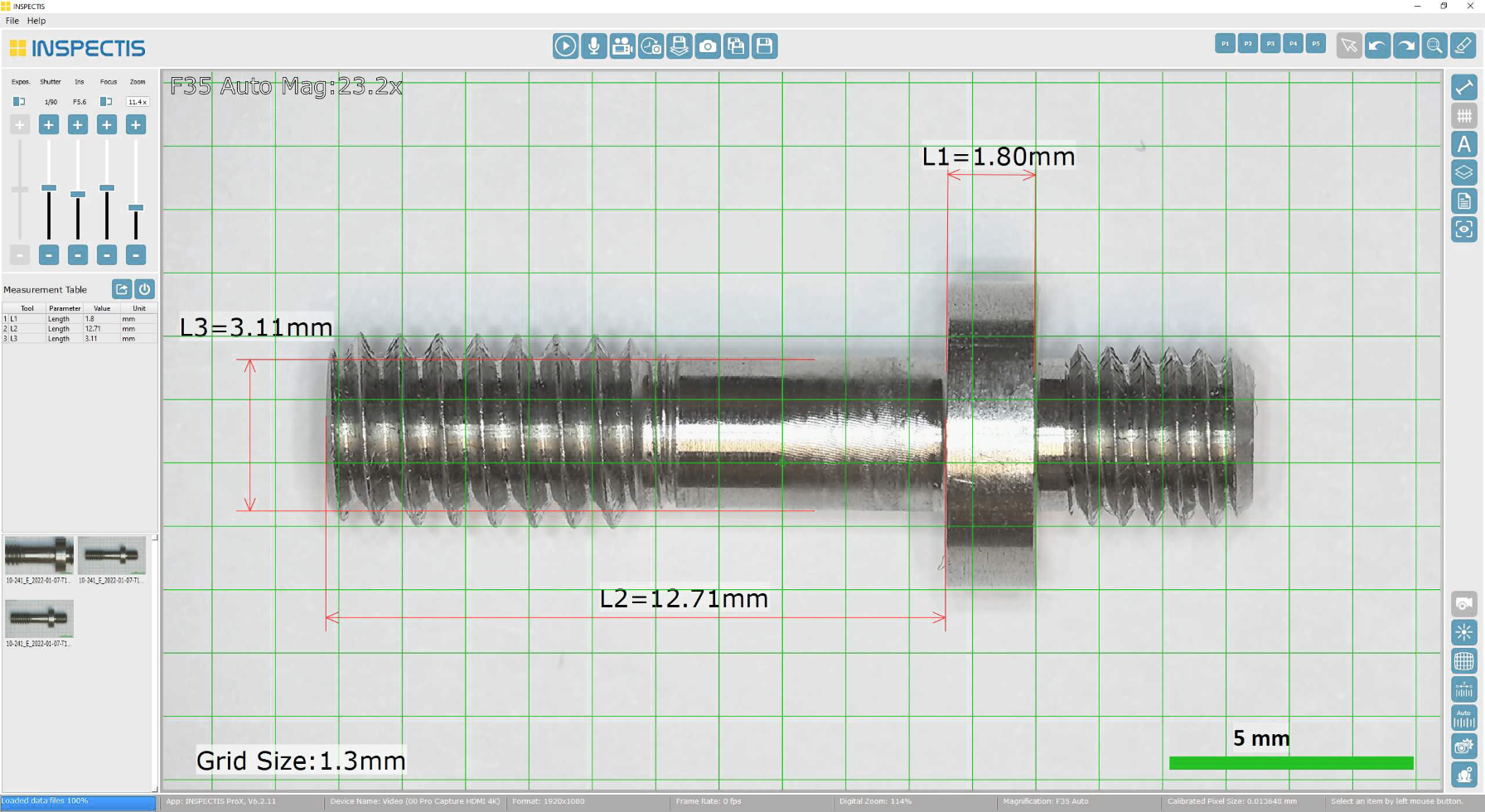

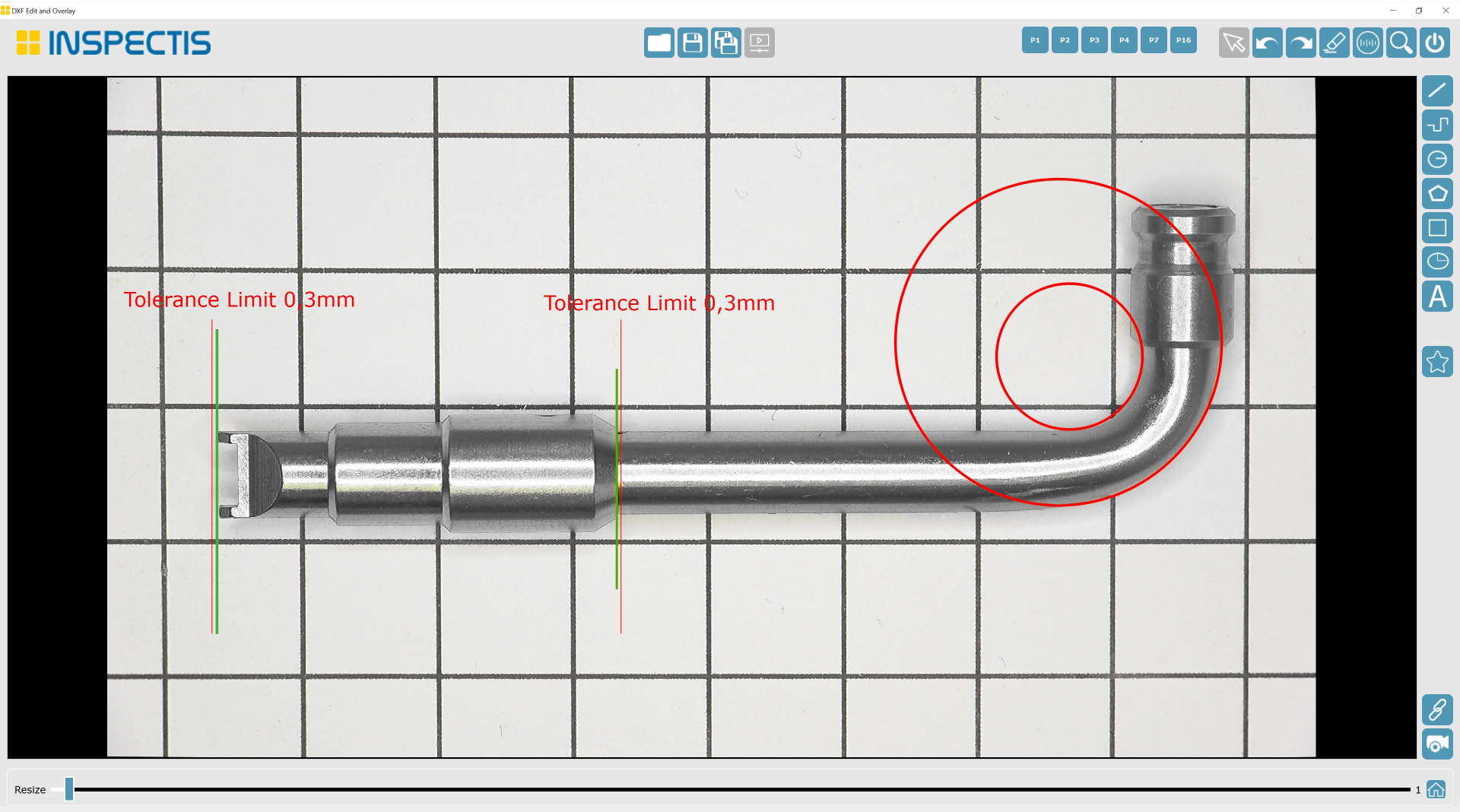

Measurement and DXF overlay on live image for Fast Pass or Fail Testing – 3 levels of software provide cost effective image capture solutions or more advanced measurement and calibrated graphic overlay features for improving the speed and quality of inspection.
Assembly and Final Product Inspection – Trap known assembly and Final Product issues by inspecting at key stages, ensuring critical parts are assembled correctly.
Inspectis Digital Microscope systems provide and major Ergonomic benefit compared to using traditional microscopes and stereo viewers.
Relief to eyes, neck and shoulders through the unique ergonomic design allow the user to sit in a comfortable, good working position which improves concentration and ensures inspection tasks can be carried out more efficiently.

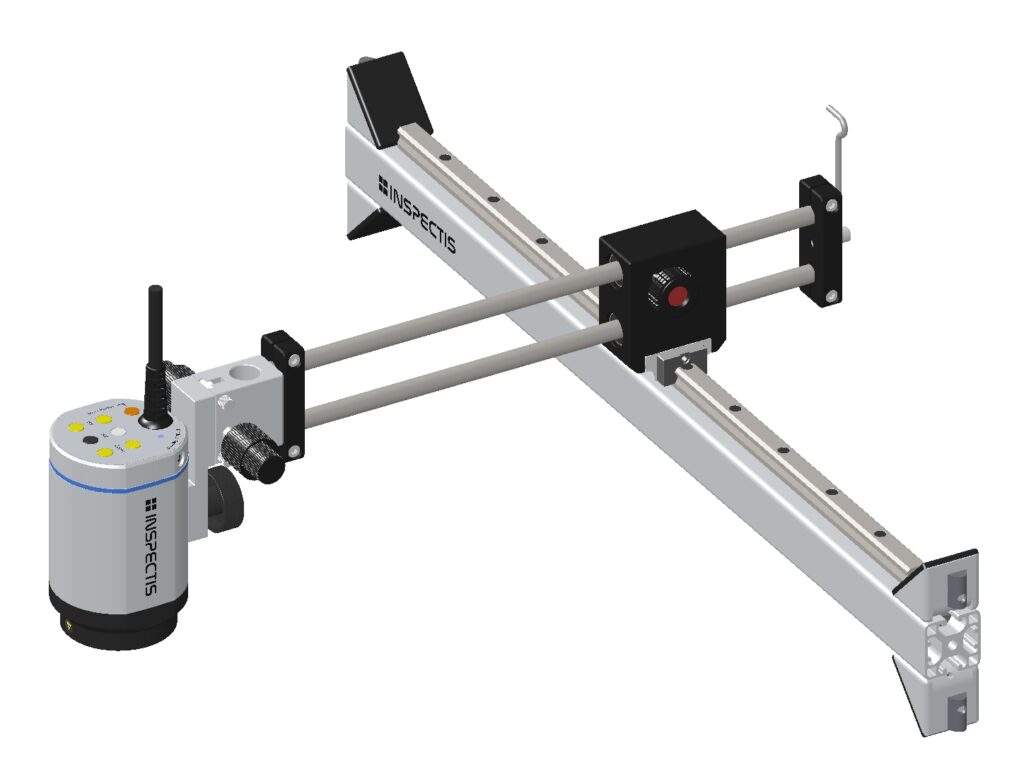

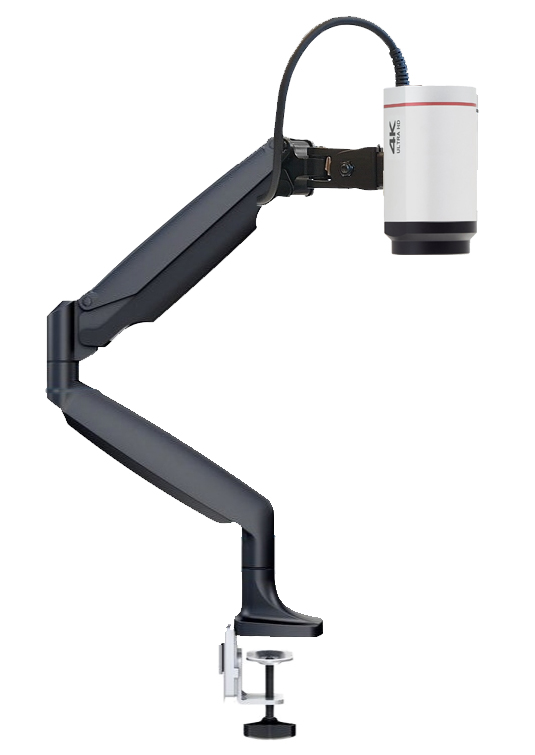

We have a huge range of stands, fixtures and X-Y gantry systems for the F40s PCB inspection camera which allows you to place your inspection exactly where you need it
