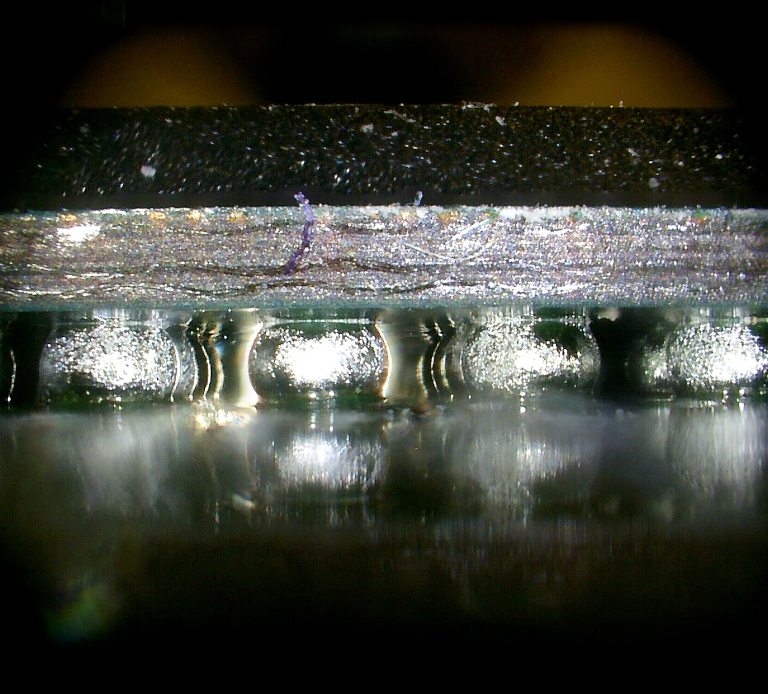

ProX Advanced Optical Side-View BGA Inspection Provides Clear High Quality Imagery of Hidden Solder Joints under BGAs

Superior Optical Performance

The ProX system includes all the key hardware and the full ProX version of the Inspectis BGA Inspection software.

A fast 5.0MP, USB3.0 digital microscope package powered by INSPECTIS© ProX software for reliable and fast side-view / top-view optical inspection, measurement and documentation.

Can be used with all types of hidden solder joints; BGA, μBGA. FlipChip, CSP, CGA, and also standard SMD component joints and leads

BGA Inspection

Inspectis Basics Software

Flexible Inspection

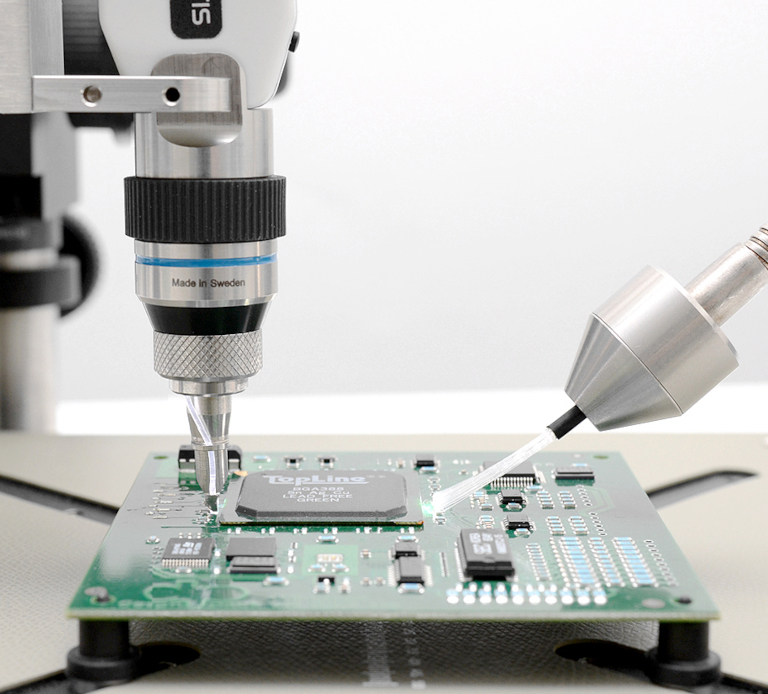

Interchangeable side-view and top-view optics make the Inspectis Basic BGA system the flexible and versatile inspection solution for all post-production processes and R&D optical inspection.


Robust Optical Probe

Precision micro-prisms with special advanced low-aperture optics are carefully assembled in a stainless steel housing to provide a robust BGA Inspection solution offering a longer life.

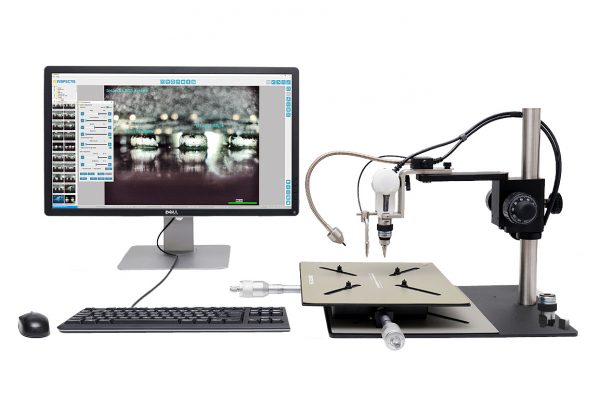

ProX System Configuration

Inspectis Digital Microscope, 5.0MP, USB3.0
INSPECTIS ProX BGA Inspection Software
Inspectis interchangeable 90º side-view BGA inspection lens
Inspectis interchangeable 80x top-view varifocal lens
Fiber Optics Background Light with High-power LED and electronic dimmer
Microprism Background Light with LED light source
Stand with Rack&Pinion, soft-touch and pivoting bracket for BGA microscope
Precision XY-stage with antistatic mat and magnetic pegs (4x)
Aluminium Carrying Case for Digital Microscope and BGA lens
Inspectis USB Foot switch for INSPECTIS© Software, 1-pedal
Annual Service and Support for INSPECTIS software (one year)
