Description

Breakthrough in Digital Microscope Technology

Industry-leading 4K 60fps image processing, featuring outstanding flicker and flare reduction to ensure optimal image quality.

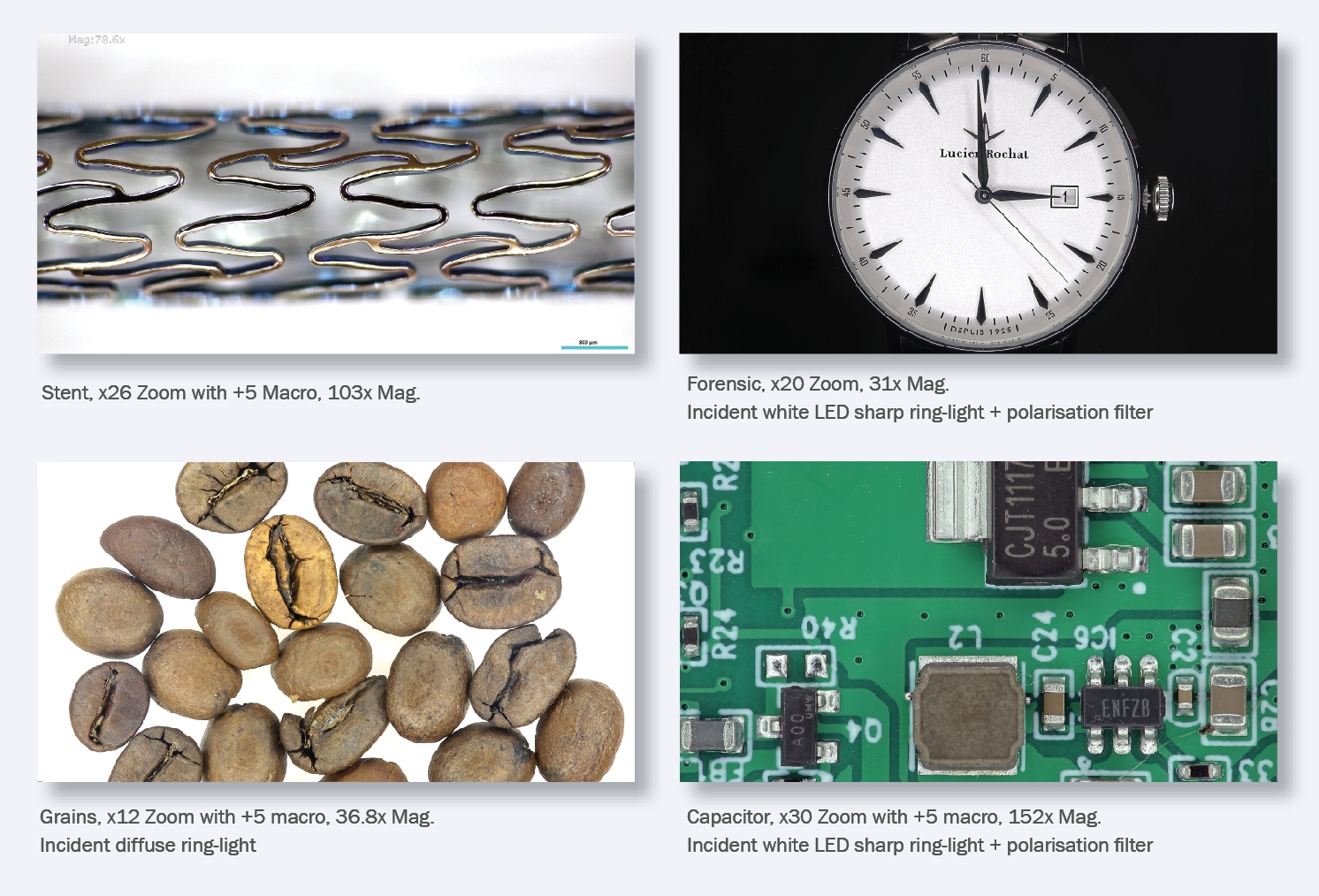

Equipped with superior optics and a high frame rate, the U50s delivers vivid 4K 60fps imagery of inspection objects with deep colour and near zero latency.

More Natural Images

The U50s has a highly sensitive image sensor with a wide dynamic range and true colour reproduction that captures video at 60 frames per second for more natural looking images.
The high video refresh rate keeps images clear & stable, minimises motion blur, and delivers smooth visuals even when objects are moving quickly.

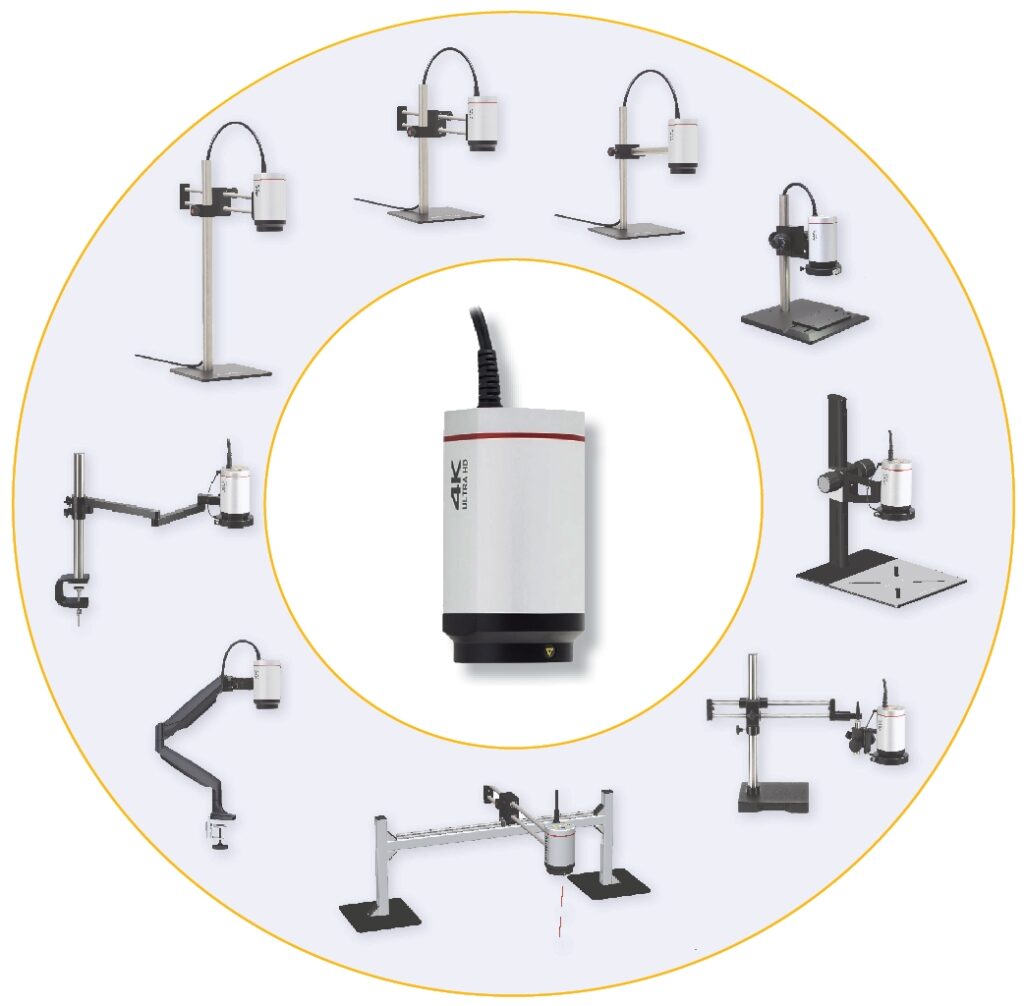

Place Your Microscope Where You Need It

With its modular design and extensive selection of stands and fixtures, the U50s 4K60 digital microscope lets users customise their inspection setup so the microscope is ideally positioned for efficient inspection.

The Impressive Specs…

First class F1.6 – 4.8 optics.
Advanced high resolution motorised zoom lens with 7-blade aperture and fast auto-focus.
225 mm free working distance with standard 1:50 zoom optics.
211mm to 4.0mm field of view equal to 2.9x to 151x on-screen magnification.
Configurable up to 1737x on-screen magnification equal to 0.35mm field of view with +56 diopter lens.
2x digital zoom processed with 3D noise reduction on top of the 25x optical zoom
Powered by INSPECTIS© software in 4 functionality levels

…Maybe the Last Microscope You’ll Ever Need!

The Advanced Kit Provides a Complete Solution for Demanding Applications

The Advanced Ultra HD Optical Inspection System combines the U50s Digital Microscope with a Fine Focusing Track Stand, LED Ring Light, X-Y Floating Board & 4k USB3.2 Gen2x2 Image Capture Device with Inspectis PRO Software to achieve the ultimate solution for all demanding electronics applications.

Recommended inspection and rework solution for 0201, 01005 & 008004 components.

Uses in Electronics:

Bare Printed Circuit Board Inspection, Digital Microscope for PCB Rework, Visual Inspection of Electronics assemblies, Solder Joint Inspection, High Magnification Digital Microscope for Wire Bonding, Micro Electronics Assembly and Hybrid Circuit Inspection.
Premium Ultra High Definition optics produces as standard 2.9–151x magnification with the +10 diopter Close-up Lens fitted up to 4715x magnification and with optional High Magnification Lenses can offer up to 1737x magnification.
The U50s Digital Microscope provides astonishing Ultra HD, 8.3 megapixel fine detail images of the PCB with minimum glare and reflections, even in poor lighting conditions.

Designed for Ergonomic Use

All Inspectis Ultra HD PCB inspection systems provide relief to eyes, neck and shoulders through the unique ergonomic design and generous 225 mm free working distance.
By allowing operators to sit comfortably in a good working position, their inspection tasks can be carried out more efficiently, reducing fatigue and increasing inspection yields.

Plug & Play

Connect the U50s PCB inspection camera to PC via a USB3.2 converter and with the Inspectis Pro software you can take advantage of a range of image capture and enhanced image software features, extending the basic PCB Inspection task to applications such rework reporting, non-contact metrology (measurement).
Live PCB rework and repair applications will benefit from the zoom levels and image detail provided, improving solder joint quality and reliability.

Alternative PCB Inspection Systems – Full HD (1080) & Ultra HD 4K (2160)

F35 Full HD PCB Inspection System

U30s Ultra HD In-line system for SMT Inspection pre Reflow

U30s Extended Working Height 4k Inspection with Image Capture
