Optical BGA Inspection Basic

Inspectis Basics BGA Inspection

Optical BGA Inspection Basic

Data Sheets and Resources


NEW Generation of Optical Side-View BGA Inspection Provides Clear High Quality Imagery of Hidden Solder Joints under BGAs

Superior Optical Performance

The BASIC system offers a fast 5.0MP, USB3.0 digital microscope and INSPECTIS Basics Software for advanced live video, image capture, analysis, and distance measurement software.

Inspectis Basics BGA Inspection

Inspectis Basics Software

Flexible Inspection

Interchangeable side-view and top-view optics make the Inspectis Basic BGA system the flexible and versatile inspection solution for all post-production processes and R&D optical inspection.


Robust Optical Probe

Precision micro-prisms with special advanced low-aperture optics are carefully assembled in a stainless steel housing to provide a robust BGA Inspection solution offering a longer life.

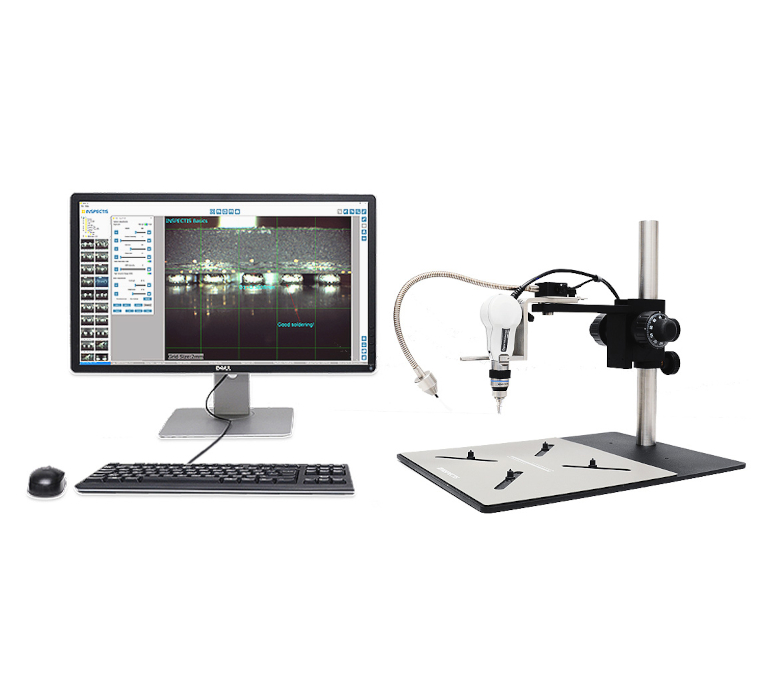

Basic System Configuration

Inspectis Digital Microscope, 5.0MP, USB3.0
INSPECTIS Basics BGA Inspection Software
Inspectis interchangeable 90º side-view BGA inspection lens
Fiber Optics Background Illumination Unit with High-power LED and electronic dimmer
Stand with Rack & Pinion, soft-touch and pivoting bracket for BGA microscope, standard size
Magnetic pegs (4x)
Annual Service and Support for INSPECTIS software (one year)
