Gloss White Polyimide 1mil 8.00mm x 10.00mm

Gloss White Polyimide 1mil 8.00mm x 10.00mm


Model: LP5536 Categories ,

Data Sheets and Resources


White Polyimide Thermal Transfer Labels

Polyimide materials offers very high tolerance to heat and our Polyimide Labels have a topcoat specifically designed to provide a highly durable printed label that’s suitable for all PCB and Component marking applications found in electronics manufacturing.

White Polyimide when printed with a durable resin ribbon provides a high contrast image that is extremely resistant to both heat (SMT Reflow & Direct Wave Soldering) and also solvent/chemical cleaning (all common types of PCB cleaning).

Applications are therefore based around traceability; a label that travels with the PCB (or Component / Device) from the start of the PCB assembly process, through all soldering stages, automated and manual PCB cleaning and PCBA inspection stages.

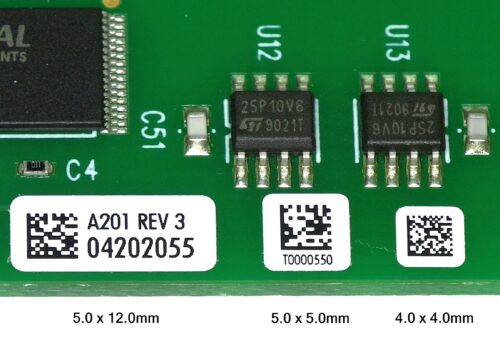

PCB and component identification labelling; traceability, standard barcode labels (Code 39, Code 128 etc.), 2D barcodes (Data Matrix – Micro QR, QR, Aztec etc.) tracking, serial number, batch data / lot numbers / date coding.

Automation and Traceability of SMT lines require very small labels, miniature labels printed with 2D codes often less than 5mm, therefore automation of applying the labels is becoming more common – see Auto Apply Labels & Feeders for more information.

Part No: LP5536
Label Size: 8.00mm x 10.00mm

Supplied 6 labels across on a 10k roll
Outer Roll Diameter 100mm
Roll Width 81.0mm
Core 3″ / 76.2mm
Outward Wound

If you cannot find your ideal size (or colour) we hold many others sizes and materials in stock and can also make labels to fit any thermal transfer label printer.

Please Contact us for custom sizes, pricing & availability.

For a compatible thermal transfer ribbon please see our Ribbon Application Guide
