SMD Reel Storage Trolley

SMD Reel Storage Trolley

Model: RRT ESD Categories , Tag

Data Sheets and Resources

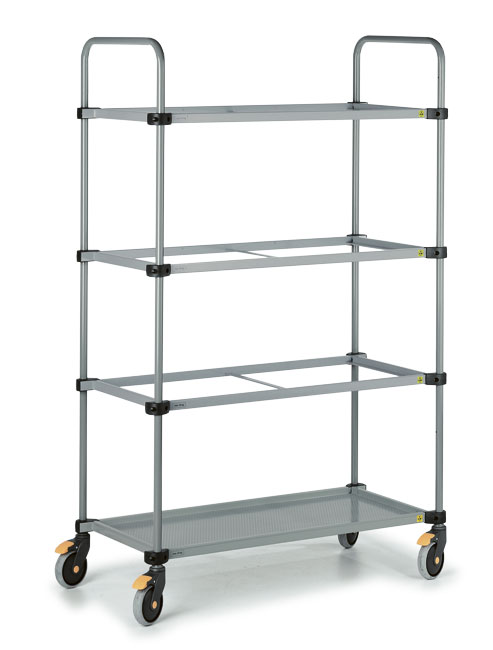

SMD Reel Storage Trolley (supplied without SMD Reel Racks)

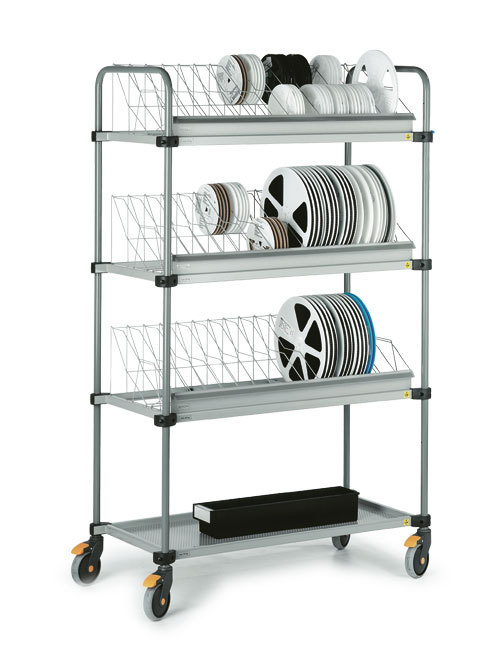

Used for storage and transportation of electronics component reels around the factory, from stores to the SMT lines.

Consists of 3 adjustable supports for reel racks and a lower shelf for trays or bulky items.
The perforated lower rail support prevents dust build-up.

The frame, reel supports and lower shelf are all ESD throughout, finished in a semi-conductive epoxy powder coated steel in grey ( RAL 7045) with 4 conductive swivel castors Ø 125 mm, all with brakes.

Load capacities: 50 kg per shelf support, total 200 kg per trolley.
Overall dimensions L x D x H: 1100 x 530 x 1780 mm.

To view the range and available accessories please download the Product Brochure.
To request a quote please contact us directly.
