Description

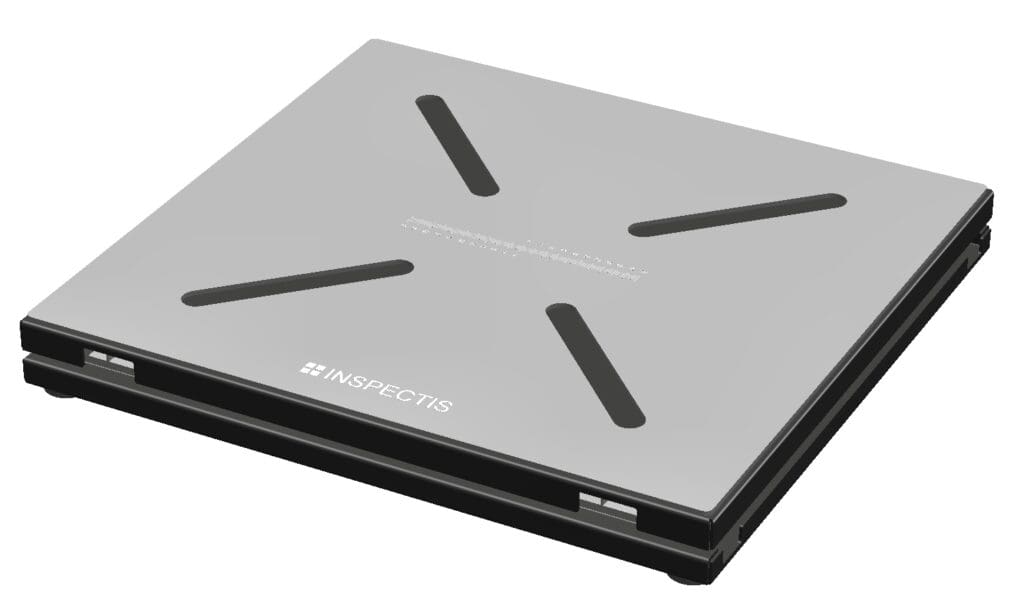

XY Floating Table

Part: HD-028

Ball bearing guided floating table with linear, low friction XY translation.
Provides controlled, smooth point-to-point lateral movement (± 160mm x ± 145mm) for PCB:s and other objects under the microscope.
The working surface is covered by a high friction antistatic mat that keeps your inspection object in place and ESD protected.
4 slots are provided for attaching optional magnetic pegs or custom made fixtures and holders to support the board or object during inspection.

A positional locking version is also available.

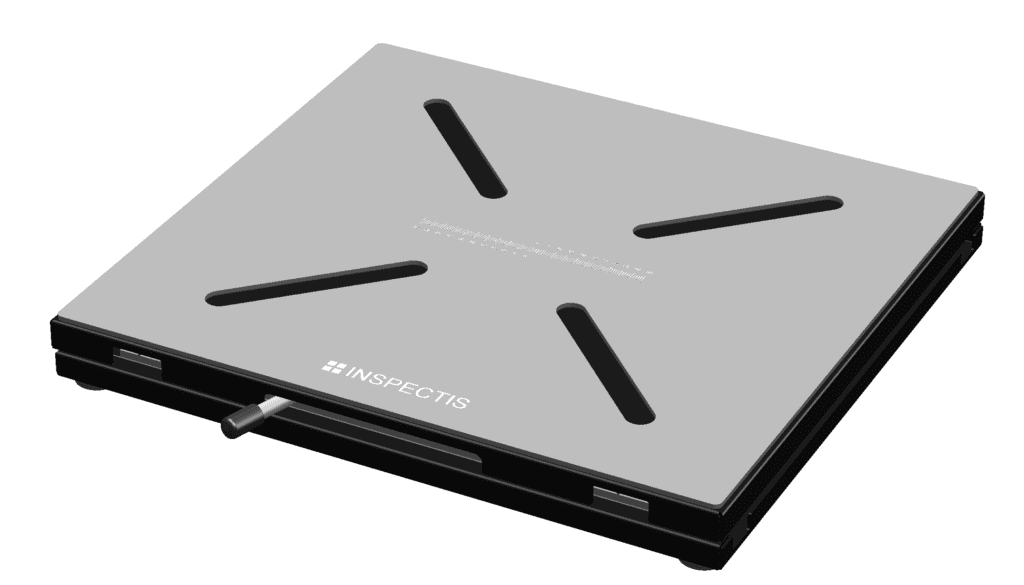

XY Floating Board with Position Lock

Part: HD-028-S

Equipped with position locking mechanism for stability and ideal for rework and soldering tasks under inspection.

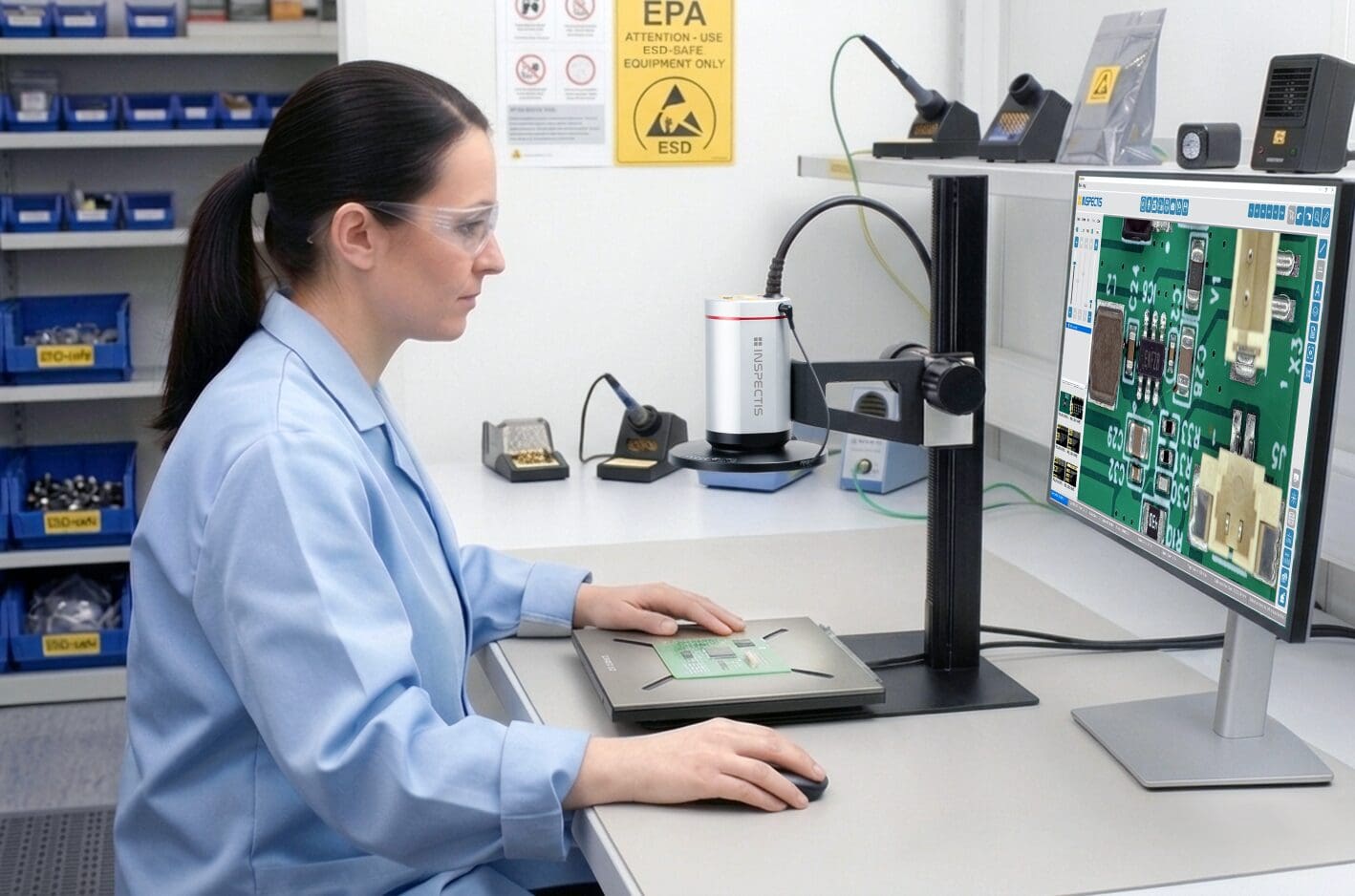

Example of application using the XY ESD Floating Table
