Part: HD-133

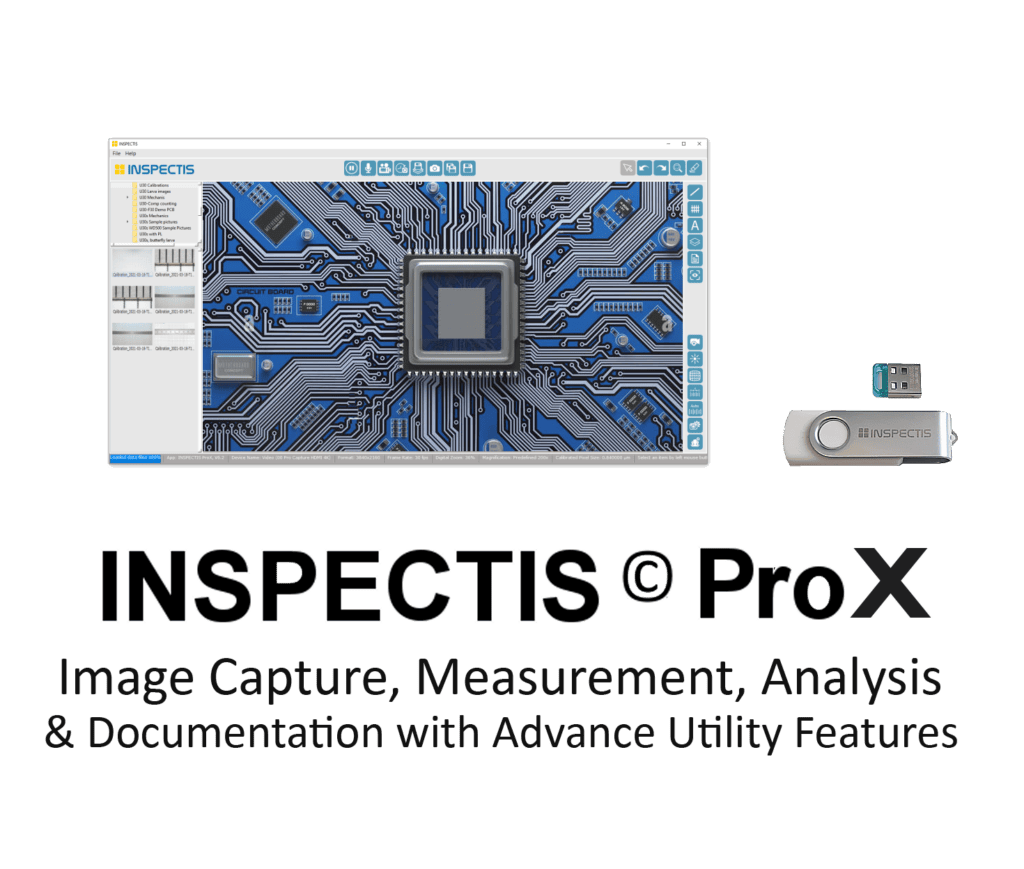

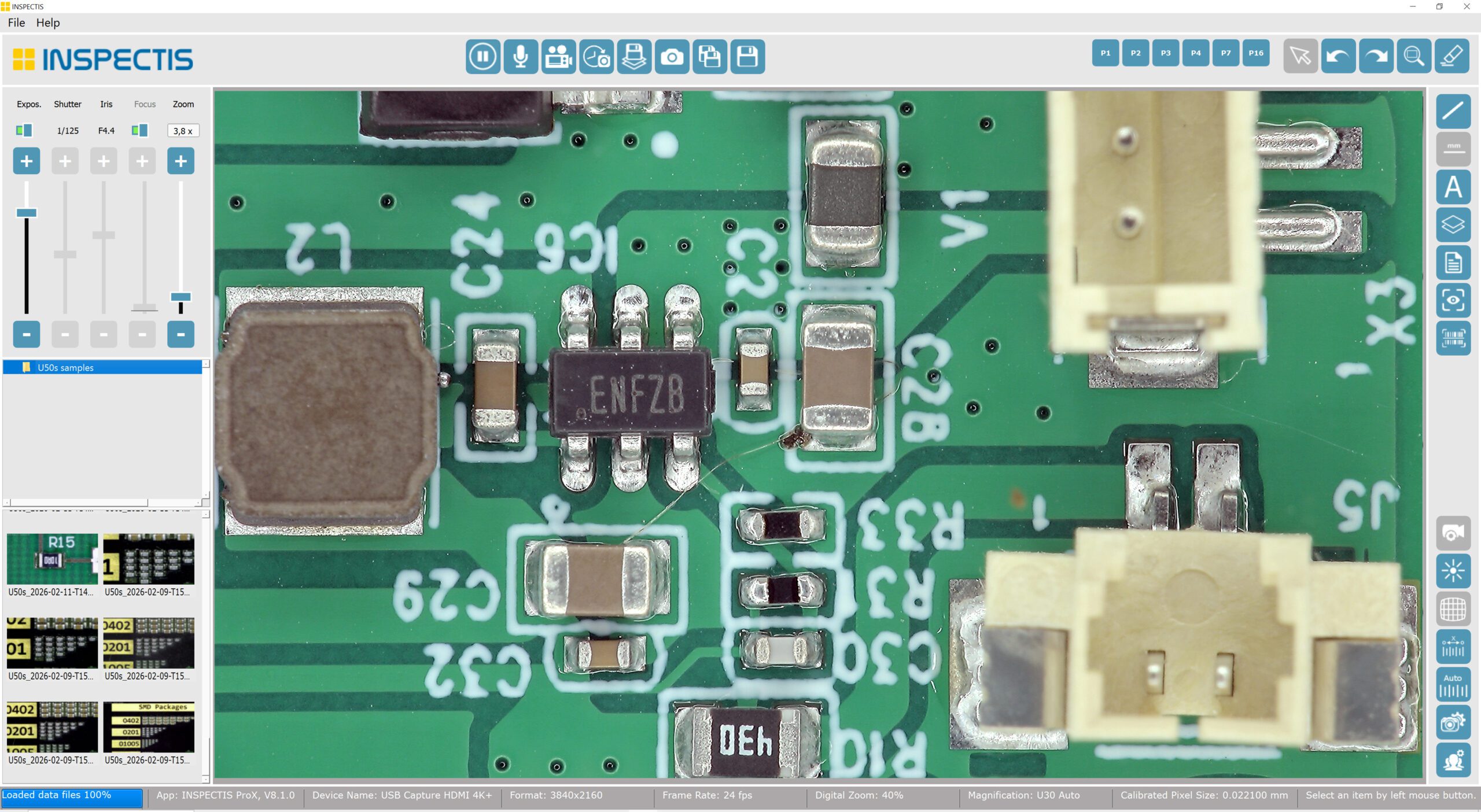

Advanced metrology, analysis and utility software with real-time communication with Inspectis digital cameras.
In addition to Pro functions, INSPECTIS ProX provides extra tools
• Automatic focus stacking (Field of view extender)
• Manual focus stacking
• Time lapse video recording
• Time interval Overlay Assisted Inspection (OAI)
• Optical edge detection and DXF export
• DXF new, import, edit and export
• Drawing toolbox for DXF edit
• DXF overlay on live image
• DXF export as PNG file
• PNG overlay on live image as digital graticule
• Automatic alignment of overlaid image to live image
• Automatic rescaling of overlaid image through zoom
16 memories with easy-to-access icons are provided to save and recall different lens and camera setups.
Delivered with USB communication cable for software control of the camera and lens parameters.
Requires USB3.0 Image capture device to match the Inspectis Digital Microscope resolution and speed (Full HD 60fps, 4k-30fps or 4K-60fps)
Pro, Image Capture, Metrology and Reporting software
OAI, Overlay Edit and Display Software with Built-in Camera Controls
