Dual White & UV LED illuminator containing both White and UL lighting Control.
Switchable between…

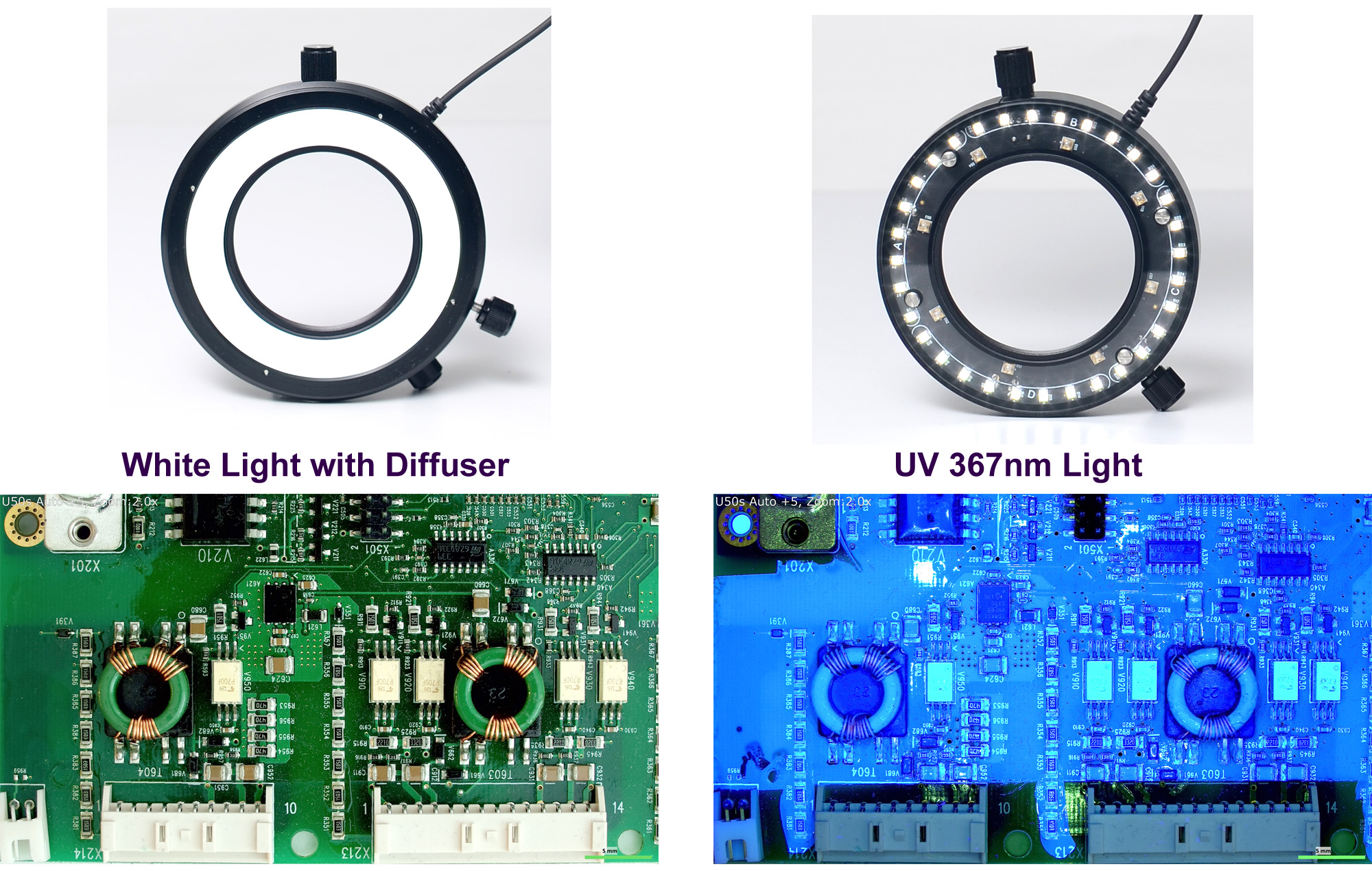

White – 32 pure white LEDs in 4 selectable segments (8 LEDs per segment) and with Automatic Segment Control.
For a various incident or oblique lighting applications with all 67mm Inspectis Digital Microscopes.

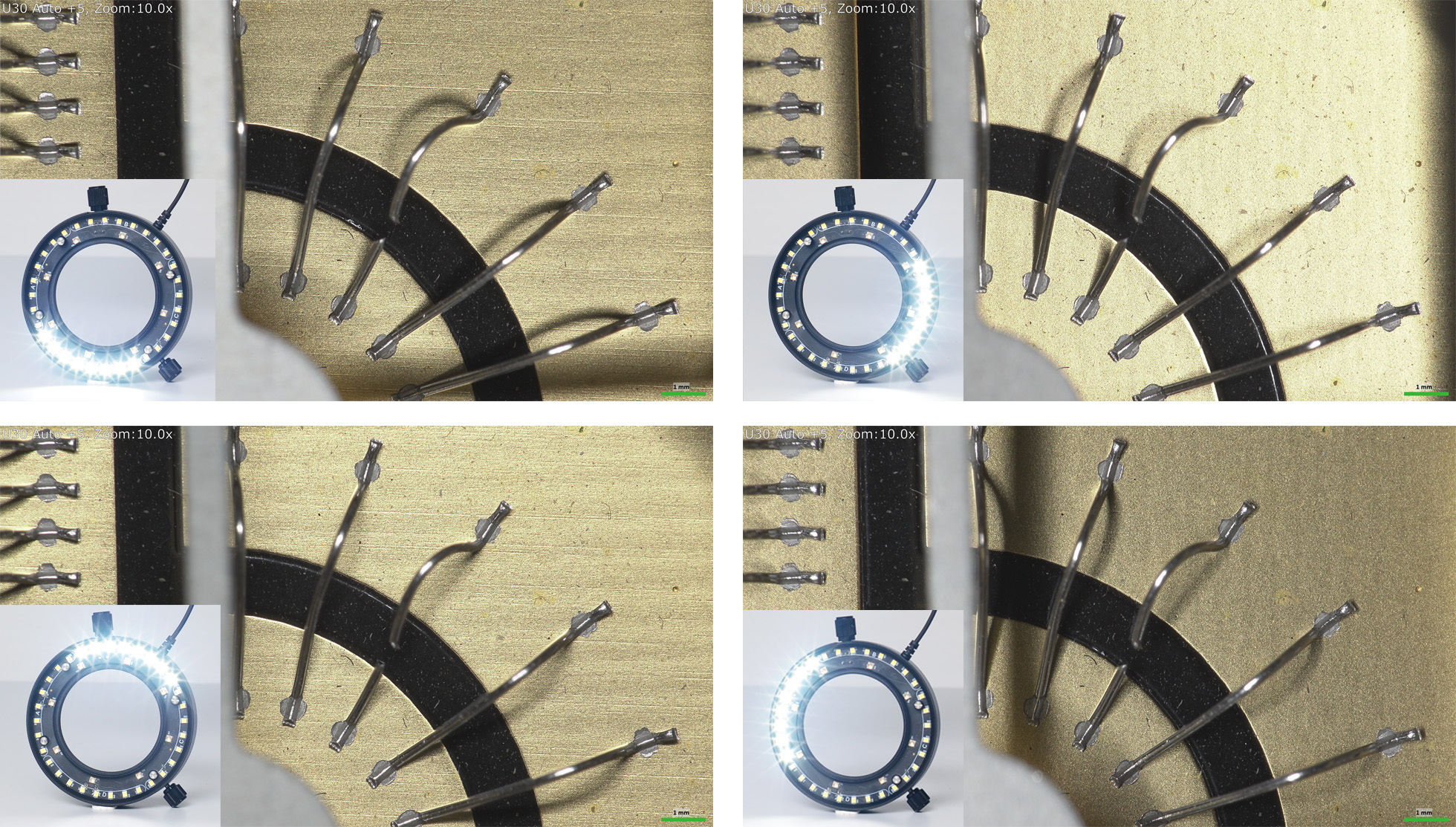

Integrated controller with electronic dimmer for brightness and Individual segment control of the white LEDs with automatic rotation of segments around the ring.
An optional Diffuser and a Polarising filter sets is available for use with the white ring light to reduce glare and reflections.

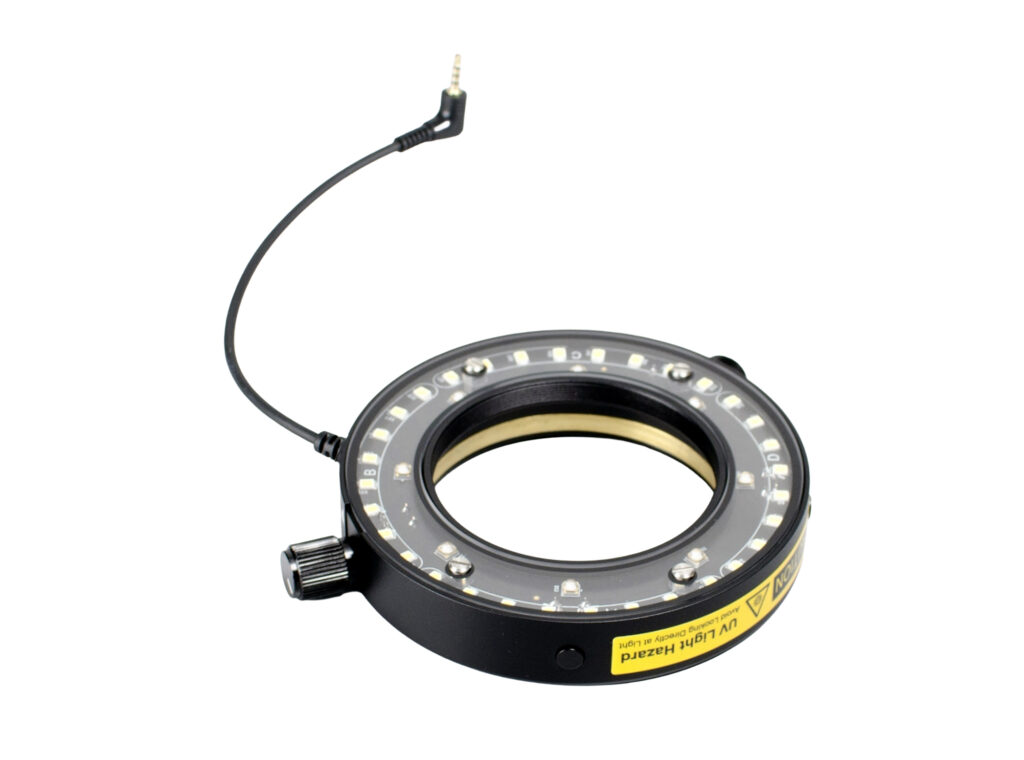

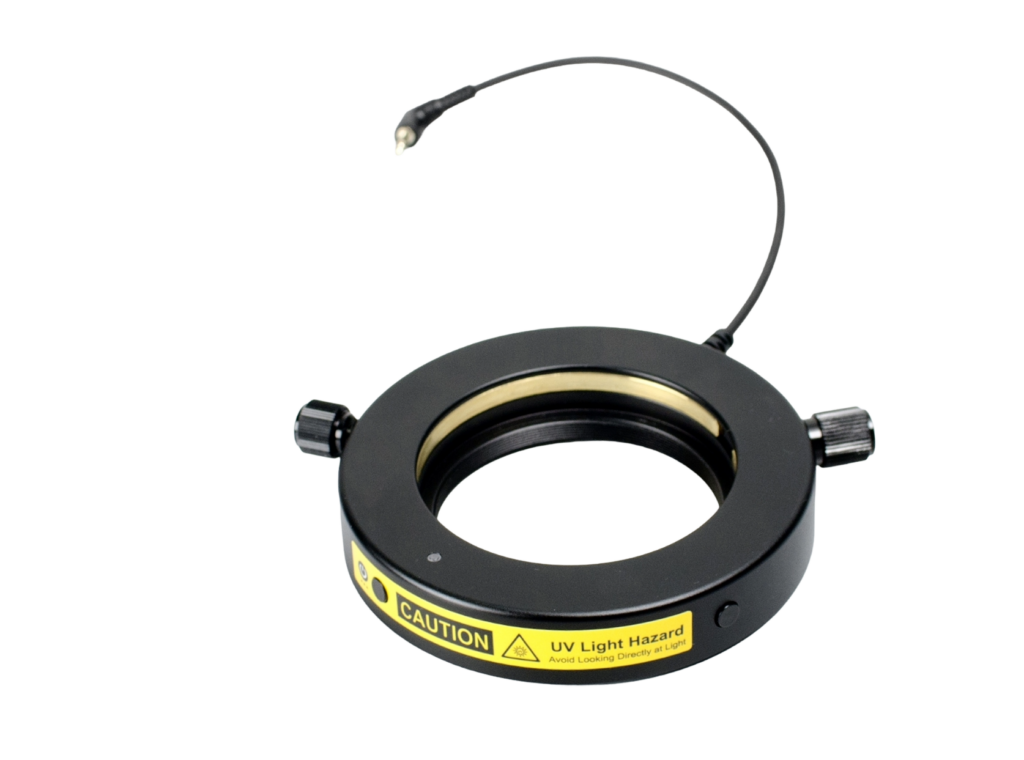

UV (Ultra Violet) 8 x LEDs (wavelength 367nm) with UV ON Indication Lamp.

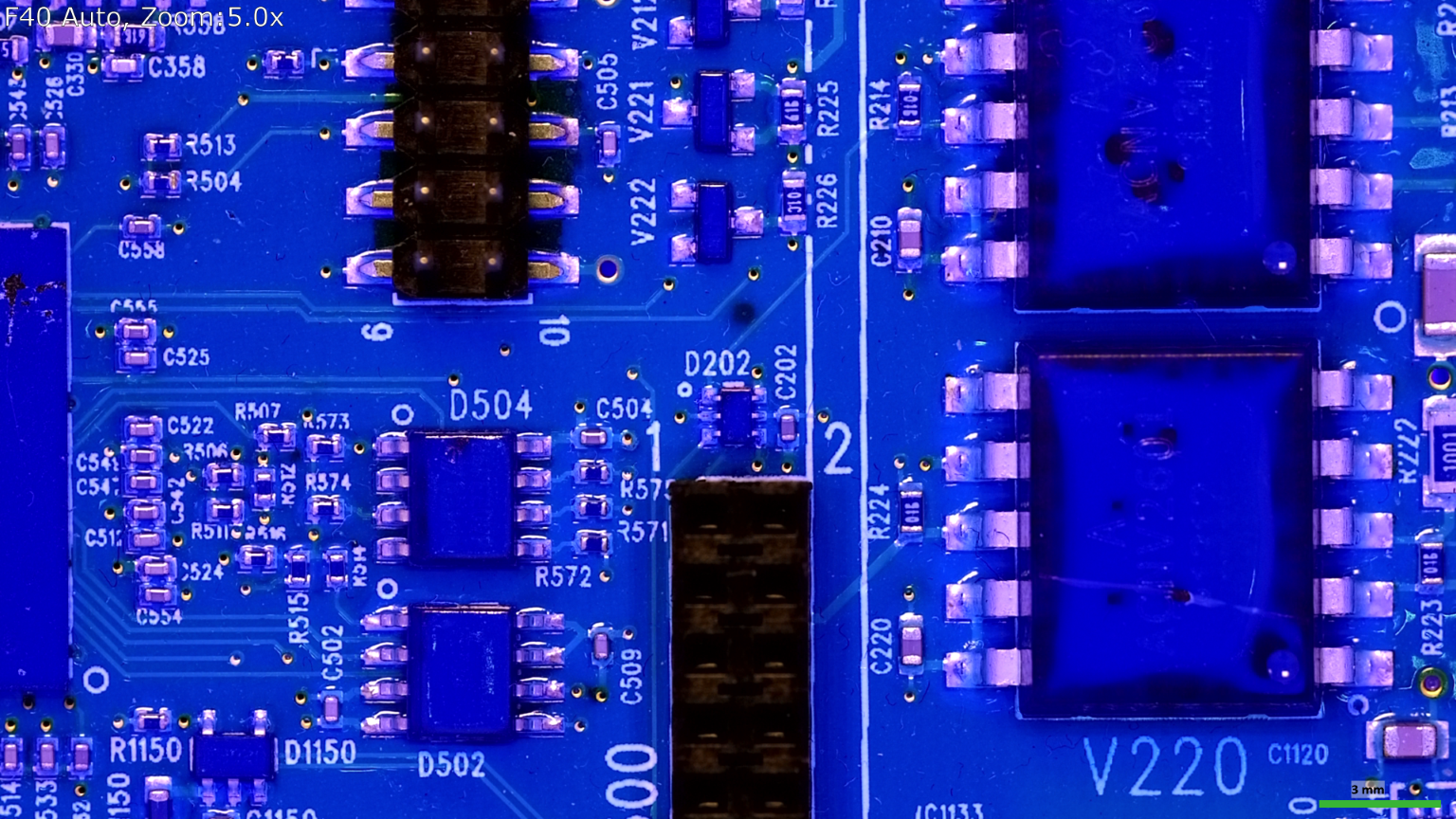

Designed specifically for conformal coating applications to show coating coverage and thickness.
All Inspectis ring lights use the camera’s on-board auxiliary power supply, reducing the need for additional power supplies and the extra cables these create.
