Advanced Digital Inspection Microscope for PCB & Electronics

U50s 4K 60fps PCB Inspection – For Highest Image Quality

Breakthrough in Digital Microscope Technology

Industry-leading 4K 60fps image processing, featuring outstanding flicker and flare reduction to ensure optimal image quality. Equipped with superior optics and a high frame rate, the U50s delivers vivid 4K 60fps imagery of inspection objects with deep colour and near zero latency.

The award-winning U50s digital microscope offers 4K Ultra High-Definition video with 8.3 megapixels, a motorized 50:1 zoom, fast centre-spot autofocus, and user-friendly on-board lens and camera controls.

More Natural Images

The U50s has a highly sensitive image sensor with a wide dynamic range and true colour reproduction that captures video at 60 frames per second for more natural looking images. The high video refresh rate keeps images clear & stable, minimises motion blur, and delivers smooth visuals even when objects are moving quickly.

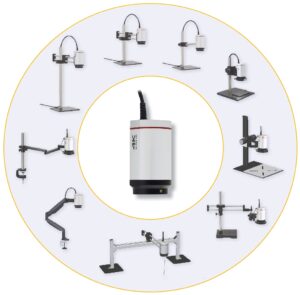

Place Your Microscope Where You Need It

With its modular design and extensive selection of stands and fixtures, the U50s 4K60 digital microscope lets users customise their inspection setup so the microscope is ideally positioned for efficient inspection.

The Impressive Specs…

First class F1.6 – 4.8 optics.
Advanced high resolution motorised zoom lens with 7-blade aperture and fast auto-focus.
225 mm free working distance with standard 1:50 zoom optics.
211mm to 4.0mm field of view equal to 2.9x to 151x on-screen magnification.
Configurable up to 1737x on-screen magnification equal to 0.35mm field of view with +56 dioptre lens.
2x digital zoom processed with 3D noise reduction on top of the 25x optical zoom
Powered by INSPECTIS© software in 4 functionality levels

…Maybe the Last Microscope You’ll Ever Need!
